Brazed Plate Heat Exchangers

Series GPL, GPLB, GPLS and GPLK                                            the brochure.



This series of FRIGOTHERM’s brazed plate heat exchangers was designed for universal applications with media of low viscosity.  Their main feature is the balanced ratio of high heat transfer rates to minimal pressure drops.  Importantly, though, at low volume flows the thermodynamically optimised V-corrugation of the plates generates a highly turbulent flow, resulting in an optimum use of the heat transfer area available. GPL and GPLK overview Limitation - Copper brazed plate heat exchangers GPLK should not be used for the following media: Amonia. Deionates. High chloride media. Seawater. Silicone oils. Special design series GPLS This is FRIGOTHERM’s standard safety plate heat exchanger with a double wall.  One double wall element consists of two brazed plates.  The individual elements are not brazed at the circumferential outer wall so that leakage can escape at all sides of the unit. The GPLB series The new GPLB series completes FRIGOTHERM’s yet existing wide range of brazed plate heat exchangers.  The devices are made of 100 % stainless steel.  Along with the copper and nickel brazed devices the GPLB brazed plate heat exchagners distinguish themselves through exceptional quality, superior thermodynamic performance and long-life cycle. Applications for the GPLB series are manifold, they can even be used with highly corrosive media or heat-transfer oil in special applications such as in chemical plants or laboratories. Its main field of application is HVACR (heating, ventilation, air conditioning and refrigeration).  The brazed plate heat exchangers guarantee maintenance-free operation as system separation in cycles such as distant heating, solar engineering and heat pumps as well as in floor heating or domestic water heating. These stainless steel brazed plate heat exchangers are suitable for drinking water.  The special state of the art brazing method of our GPLB series prevents from undesired reactions to copper or nickel ions dissolved in the water, thus limiting the contents of these non-ferrous metals in drinking water. Dimensions - Standard Connections - Applications - HVAC. Tap water. Heat pumps. Solar technology. District heating. Combined heating and power stations. Chemical plants. Refrigeration engineering. Technical Data- 100 % stainless steel Operating pressures max.: 25 bar / 30 bar (standard), higher pressures available on request. Operating temperatures max.: - 200 °C to + 350 °C (standard). CE-certified. Required data for the best brazed plate heat exchanger design State-of-the-art computer selection software is used, enabling the team to supply customers with the optimal model size.  The data required to make the optimal model size selection can be found in the GET A QUOTE section - simply click on PLATE HEAT EXCHANGERS, complete the form electronically and submit it to the FRIGOTHERM team. If you still require further assistance, please do not hesitate to contact us - we will be pleased to assist you. Summary Overview
MODEL
GPLB 2
GPLB 25
GPLB 4
GPLB 5
GPLB 6
GPLB 7
Male Threads
G 1”
G 1”
G 1”
G 1½”
G 1½”
G 2”
Female Threads
G 1”
G 1”
G 1”
G 1½”
G 1½”
G 2”
Soldered Connection
28 mm
28 mm
35 mm
35 mm
35 mm
54 mm
Rotalock Connection
1”- 14 UNS
1” - 14 UNS
1¼” 12 UNF
1¼” 12 UNF
1¼” 12 UNF
2¼” 12 UNF
DIN-flange
DN 50 / PN 40
MATERIALS   Standard Designs   Shells - Steel 304SS, 316SS, 304LSS,     316LSS up to 42-inch diametre   Bonnets / Channels - Steel, 304SS, 3136SS, 304LSS, 316LSS, Cast Iron, Cast Bronze,   Ductile Iron   Tubesheets - Aluminium Bronze, 90/10 CuNi, Muntz, RNB, 304SS, 316SS, 304LSS,    316LSS Steel   Tubes - Carbon Steel, Stainless Steel, Nickel and Nickel Alloys, Titanium and other Alloys, Bare and Lo-Fin Tubing   CAPABILITIES Tube expansion Seal and strength welding of  tubes to tubesheet Expansion joints (flanged and  flued head as well as bellows  type) Die pen and Helium leak testing Heat transfer test laboratory Radiographic, ultrasonic and magnetic particle testing (sub- contracted)
DESIGN CAPABILITIES   Custom Designs   Materials - Stainless steel(s) (including 300, 400  and 900 series), Titanium, 90/10 CuNi, 70/30 CuNi, Incoloy, Inconel, 254SMO (Note: Weld qualifications may have to be developed)   Diametre -  Up to 22 inches for standard designs Custom designs up to 42 inches   Length - Up to 30 feet for standard steel designs and 21 feet for standard stainless steel designs Custom designs up to 40 feet   Temperature - From -20 °F (-29 °C) up to 655 °F (343 °C) with standard designs Custom designs from -300 °F         (-184 °C) up to 1000°F (538 °C)   Weight - 10 tons maximum   SPECIFICATIONS ASME Section VIII Division 1 TEMA Classes “B”, “C” and “R” API The Pressure Equipment    Directive (97/23/EC) SANS 347
 MODELS OF EFFICIENCY   Customised Shell and Tubes,   OCC and Univex Series Brazed Plate Heat Exchangers Bolted Plate Heat Exchangers FOT Series Air Blast Oil Coolers Air Heaters, Steam Boilers
SOLDER: COPPER
SOLDER: NICKEL

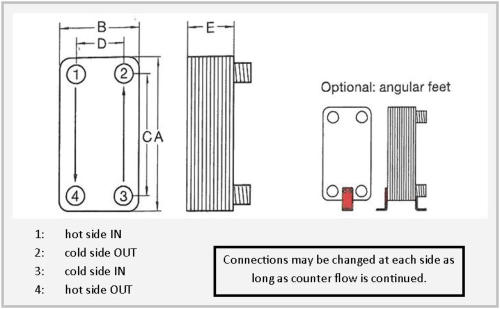

A (OVERALL MM)
B (OVERALL MM)
E (OVERALL MM)
C CONNECTION DISTANCE (MM)
D CONNECTION DISTANCE (MM)
CONNECTION (STANDARD)
NO OF PLATES (N) (MAX)
EMPTY WEIGHT (KG)
VOLUME / CHANNEL (LTR. / CHANNEL)
GPL 2
NPL 2
230
89
12 + 2,3 x N
182
43
G ¾”
50
0,06 x N + 1,1
0,030
GPL 3
NPL 3
325
89
12 + 2,3 x N
279
43
G ¾”
50
0,08 x N + 1,3
0,045
GPL 4
NPL 4
171
124
12 + 2,3 x N
120
73
G 1”
100
0,06 x N + 1,2
0,030
GPL 5
NPL 5
332
124
12 + 2,3 x N
281
73
G 1”
100
0,12 x N + 1,6
0,065
GPL 6
NPL 6
529
124
12 + 2,3 x N
478
73
G 1”
100
0,24 x N + 2,0
0,100
GPL 7
NPL 7
529
269
14 + 2,4 x N
460
200
G 2”
150
0,60 x N + 5,5
0,230
GPL 8
529
269
14 + 2,4 x N
421
161
G 2½”
260
0,54 x N + 10
0,220
GPL 9
798
269
14 + 2,4 x N
690
161
G 2½”
260
08 x N + 11,5
0,400
GPL 10
870
383
23 + 2,4 x N
723
237
DN 100
360
1,25 x N + 39,5
0,600
GPLK 10
GPLK 20
GPLK 30
GPLK 35
206
194
311
466
73
80
73
74
8 + 2,27 x    (N-1)
10 + 2,25 x N
10 + 2,3 x N
10 + 2,3 x N
172
154
278
432
42
40
40
40
G ½”
G ¾”
G ¾”
G ¾”
60
60
60
60
0,81 + 0,04 x (N- 1)
0,8 + 0,05  x N
0,84 + 0,07   x N
1,37 + 0,113  x N
0,025
0,025
0,040
0,063
GPLK 40
GPLK 50
GPLK 55
GPLK 60
GPLK 70
GPLK 80
306
304
522
504
528
527
106
124
106
124
245
246
10 + 2,4 x N
10 + 2,4 x N
10 + 2,4 x N
10 + 2,4 x N
11,5 + 2,4 x N
11 + 2,85 x N
250
250
466
444
456
430
50
70
50
64
174
148
G 1”
G 1”
G 1”
G 1”
G 2”
G 2½”
100
100
120
120
160
140
1,5 + 0,135  x N
1,6 + 0,15  x N
3,1 + 0,22  x N
3,5 + 0,24  x N
7,2 + 0,52  x N
8,5 + 0,49  x N
0,055
0,065
0,095
0,107
0,232
0,289
N = Number
MODEL
MAX. NO. OF PLATES
HEAT EXCHANGE SURFACE AREA
CONTENT / VOLUME PRIMARY
CONTENT / VOLUME SECONDARY
MAX. VOLUME FLOW
WEIGHT
A
B
C
D
E
(m²)
(ltr)
(ltr)
(m/h)
(kg)
(mm)
(mm)
(mm)
(mm)
(mm)
GPLB 2
50
0.80
0.88
1.10
15
5.0
90
237
41
188
133
GPLB 25
50
1.68
1.80
1.90
15
9.4
90
459
41
408
133
GPLB 4
GPLB 5
GPLB 6
50
100
100
0.78
3.40
5.65
0.90
4.60
5.80
0.95
3.70
5.90
19
20
20
4.6
17.0
28.0
125
125
125
173
335
532
70
70
70
120
278
475
133
253
253
GPLB 7
150
18.00
20.00
20.00
70
86.0
271
532
70
444
375
MODEL
MAX. NO. OF PLATES
HEAT EXCHANGE SURFACE AREA
CONTENT / VOLUME PRIMARY
CONTENT / VOLUME SECONDARY
MAX. VOLUME FLOW
  WEIGHT
DIMENSIONS
View View
